Design Rules

2 design-rule sets are defined:



Name: Fine_Design_Rules
Description: Fine Design Rules
Number: 1 (default set)
Default Rules
Trace Width: 2 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 2 (4) 3 (5) 3 (6)
Via-Up 3 3 (7) 3 (8)
Via-Down 3 3 3 (9)
Via-Up Diameter: 3 um (2)

Via-Down Diameter: 3 um (3)

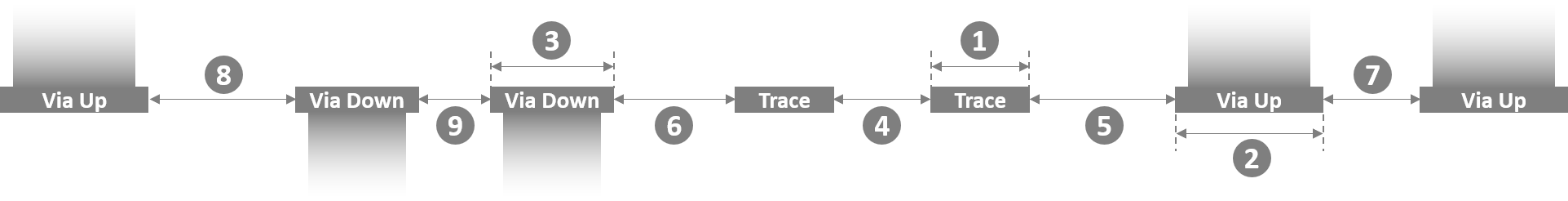

Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Exception #1: '50_ohm' for differential pairs
  ( 5.0 um diff-pair pitch)

Trace Width: 2 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 2 (4) 3 (5) 3 (6)
Via-Up 3 3 (7) 3 (8)
Via-Down 3 3 3 (9)
Via-Up Diameter: 3 um (2)

Via-Down Diameter: 3 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Exception #2: '50_ohm' for pseudo-nets

Trace Width: 8 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 2 (4) 3 (5) 3 (6)
Via-Up 3 3 (7) 3 (8)
Via-Down 3 3 3 (9)
Via-Up Diameter: 11 um (2)

Via-Down Diameter: 11 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Exception #3: '100_ohm' for differential pairs
  ( 8.0 um diff-pair pitch)

Trace Width: 2 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 2 (4) 3 (5) 3 (6)
Via-Up 3 3 (7) 3 (8)
Via-Down 3 3 3 (9)
Via-Up Diameter: 3 um (2)

Via-Down Diameter: 3 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Exception #4: '100_ohm' for pseudo-nets

Trace Width: 11 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 2 (4) 3 (5) 3 (6)
Via-Up 3 3 (7) 3 (8)
Via-Down 3 3 3 (9)
Via-Up Diameter: 11 um (2)

Via-Down Diameter: 11 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Layer Usage
M1 Show Hide
M2 Show Hide
M3 Show Hide
M4 N/A
Usage of 'Fine_Design_Rules':

Name: Coarse_Design_Rules
Description: Coarse Design Rules
Number: 2
Default Rules
Trace Width: 3 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 3 (4) 4 (5) 4 (6)
Via-Up 4 4 (7) 4 (8)
Via-Down 4 4 4 (9)
Via-Up Diameter: 4 um (2)

Via-Down Diameter: 5 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Exception #1: '50_ohm' for differential pairs
  (10.0 um diff-pair pitch)

Trace Width: 3 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 3 (4) 4 (5) 4 (6)
Via-Up 4 4 (7) 4 (8)
Via-Down 4 4 4 (9)
Via-Up Diameter: 4 um (2)

Via-Down Diameter: 5 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Exception #2: '50_ohm' for pseudo-nets

Trace Width: 14 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 3 (4) 4 (5) 4 (6)
Via-Up 4 4 (7) 4 (8)
Via-Down 4 4 4 (9)
Via-Up Diameter: 15 um (2)

Via-Down Diameter: 16 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Exception #3: '100_ohm' for differential pairs
  (15.0 um diff-pair pitch)

Trace Width: 3 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 3 (4) 4 (5) 4 (6)
Via-Up 4 4 (7) 4 (8)
Via-Down 4 4 4 (9)
Via-Up Diameter: 4 um (2)

Via-Down Diameter: 5 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Exception #4: '100_ohm' for pseudo-nets

Trace Width: 19 um (1)     Shape-to-Shape Spacings (um)

Trace Via-Up Via-Down
Trace 3 (4) 4 (5) 4 (6)
Via-Up 4 4 (7) 4 (8)
Via-Down 4 4 4 (9)
Via-Up Diameter: 19 um (2)

Via-Down Diameter: 19 um (3)
Parenthetical values denote dimensions in figure.

Allowed routing directions: All directions
(N/NxNE/NE/ExNE/E/ExSE/SE/SxSE/S/SxSW/SW/WxSW/W/WxNW/NW/NxNW/up/down)
Layer Usage
M1 N/A
M2 Show Hide
M3 Show Hide
M4 Show Hide
Usage of 'Coarse_Design_Rules':
